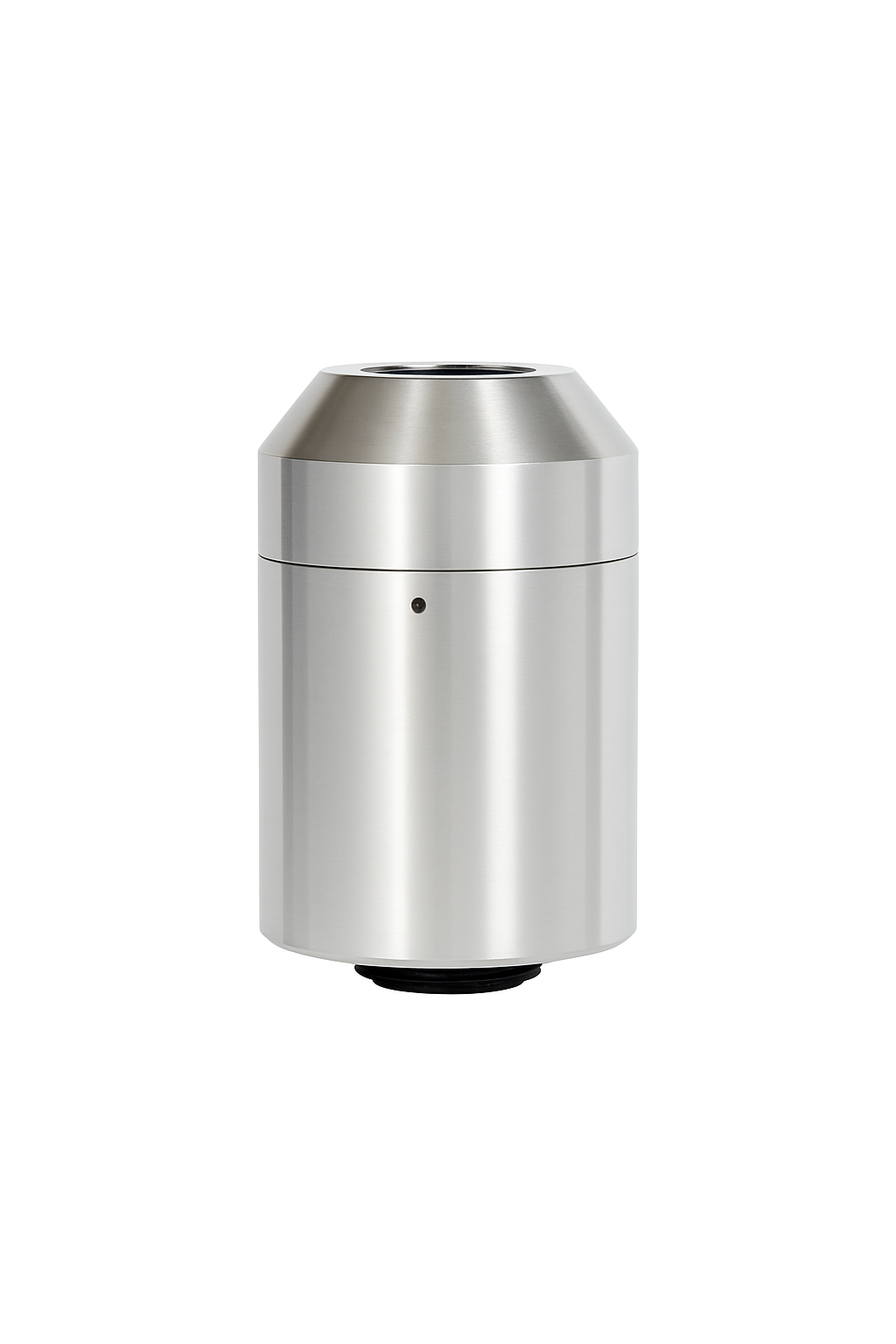

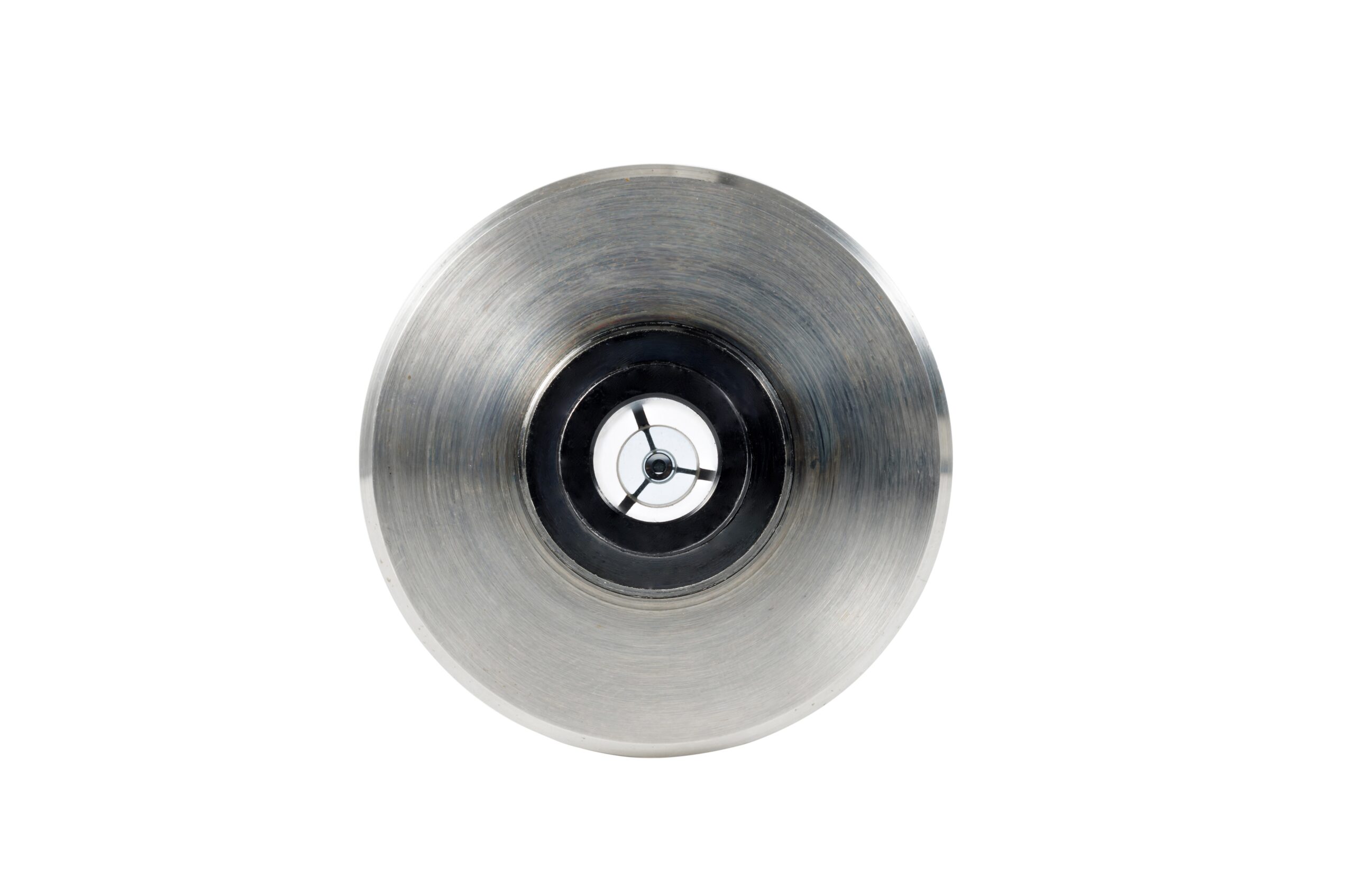

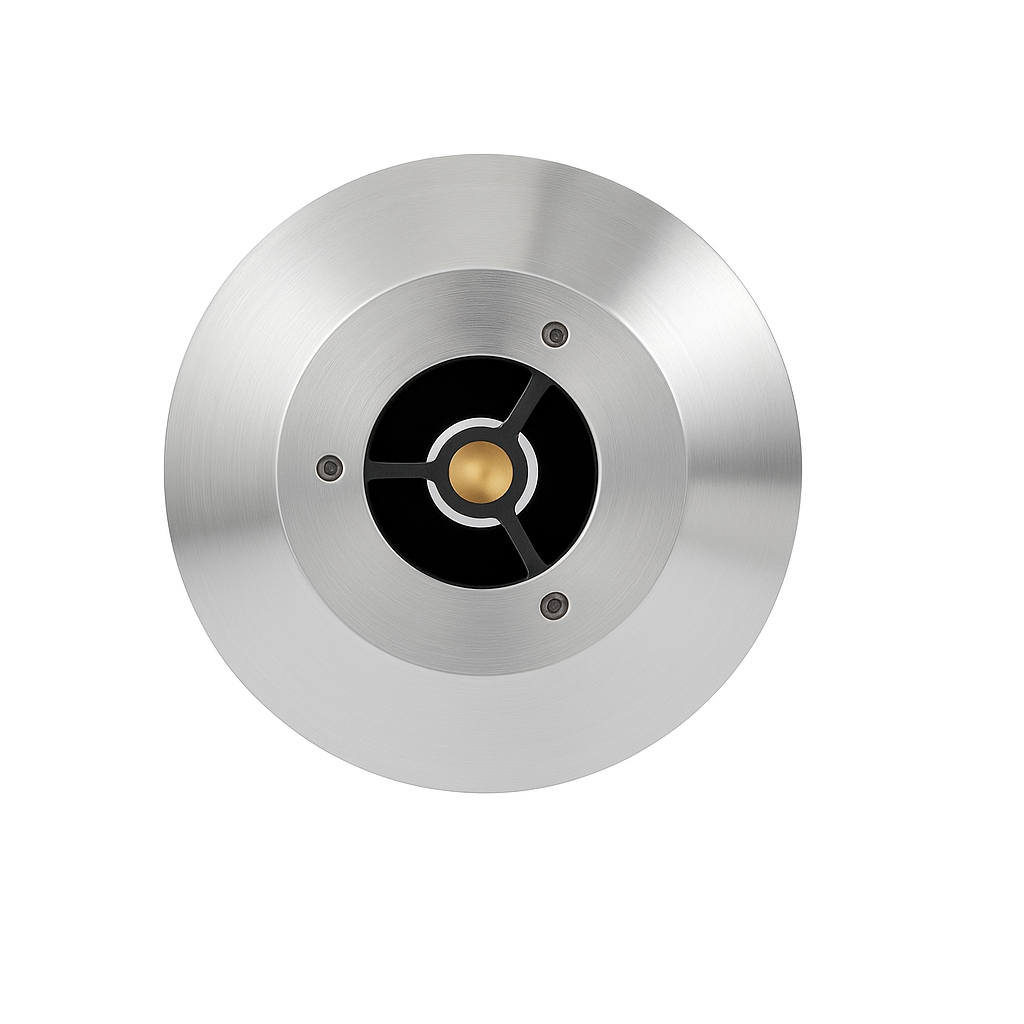

The Cassegrain-type all-reflective microscope objective is a optical component designed for high-precision imaging and multi-wavelength analysis. Featuring a 15× broadband reflective design with a 200 mm focal length and an infinite back focal distance, it supports confocal imaging across a wide spectral range from 200 nm to 14 µm. With excellent control of wavefront aberrations, the system achieves a combined RMS wavefront error better than λ/15, delivering superior image quality and spectral fidelity.
Key Functions
1. Cassegrain optical design, ideal for compact system integration
2. Hyperspectral coverage (200 nm – 14 µm)
3. Multi-wavelength, confocal focus capability
4. 15× magnification with broadband reflective optics
5. 200 mm focal length with infinity-corrected back focal distance
6. Exceptional wavefront control (RMS < λ/15)
Applications
1. Hyperspectral imaging systems
2. Semiconductor defect inspection
3. Super-resolution optical microscopy systems
