Description

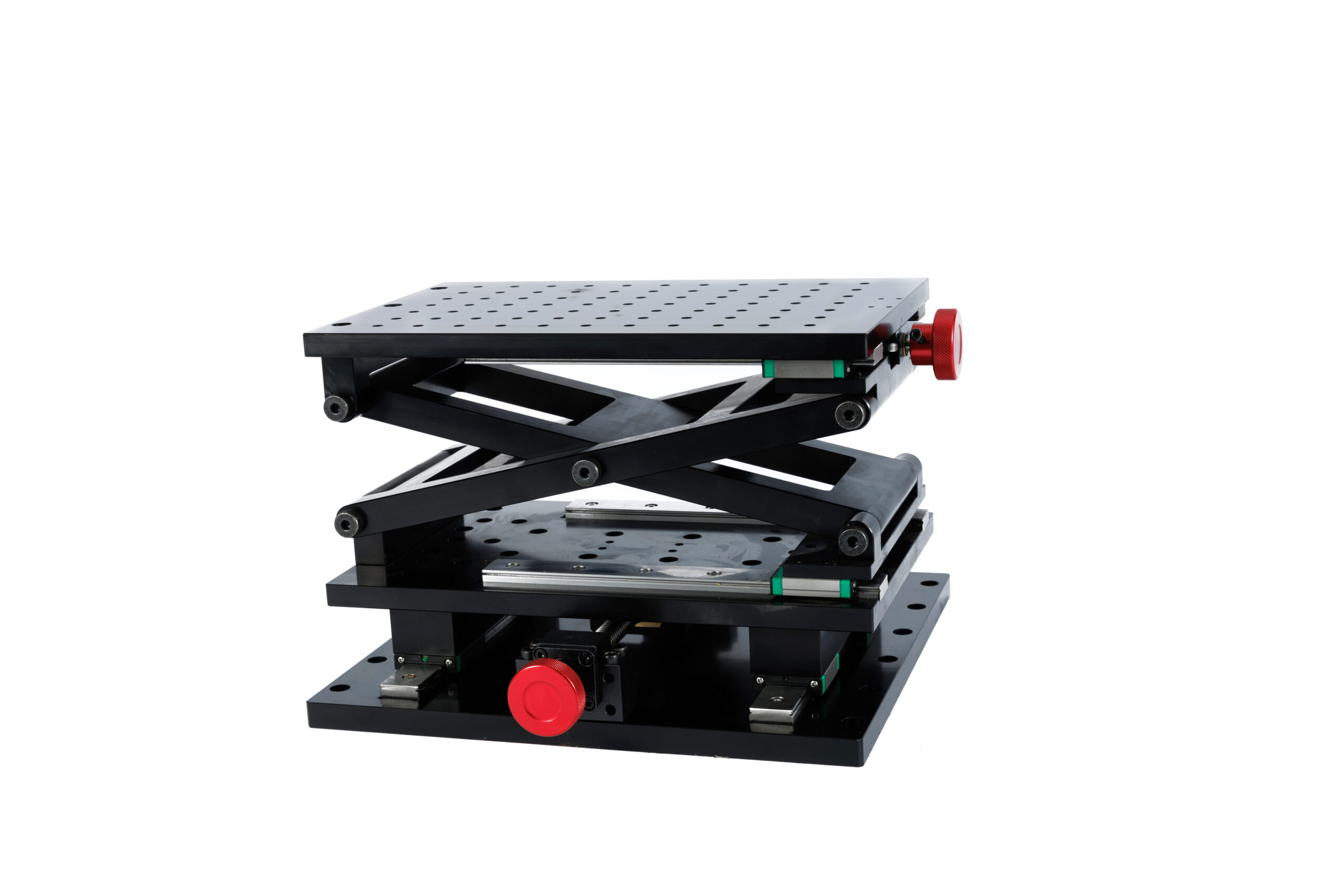

This Dual-Axis Optical Lab Jack features vertical lift and forward/backward translation with a counterbalance structure design. The lifting process is smooth, with a platform flatness deviation of less than 0.05mm, ensuring accuracy throughout the adjustment process. The platform size can reach 200mm x 320mm, with a maximum load capacity of 35KG. It is suitable for precision optical calibration, laser equipment calibration, and imaging system stability testing.
Specifications
1. Adjustment Dimensions: Dual-axis (vertical Z-lift + horizontal X-shift)
2. Lifting Accuracy: ≤ 0.03mm flatness error per 50mm movement, backlash-free
3. Platform Size: 200mm × 320mm (Height: 200mm)
4. Base Size: 300mm × 320mm
5. Horizontal Travel: 100mm
6. Lifting Range: 200mm – 420mm
7. Platform Weight: 16KG
8. Load Capacity: 35KG
