| Specifications | |||||||
| Model | Focal Length | Effective Aperture | Central Obstruction | RMS Accuracy | Dimensions (L × W × H) | Weight | Accessories |

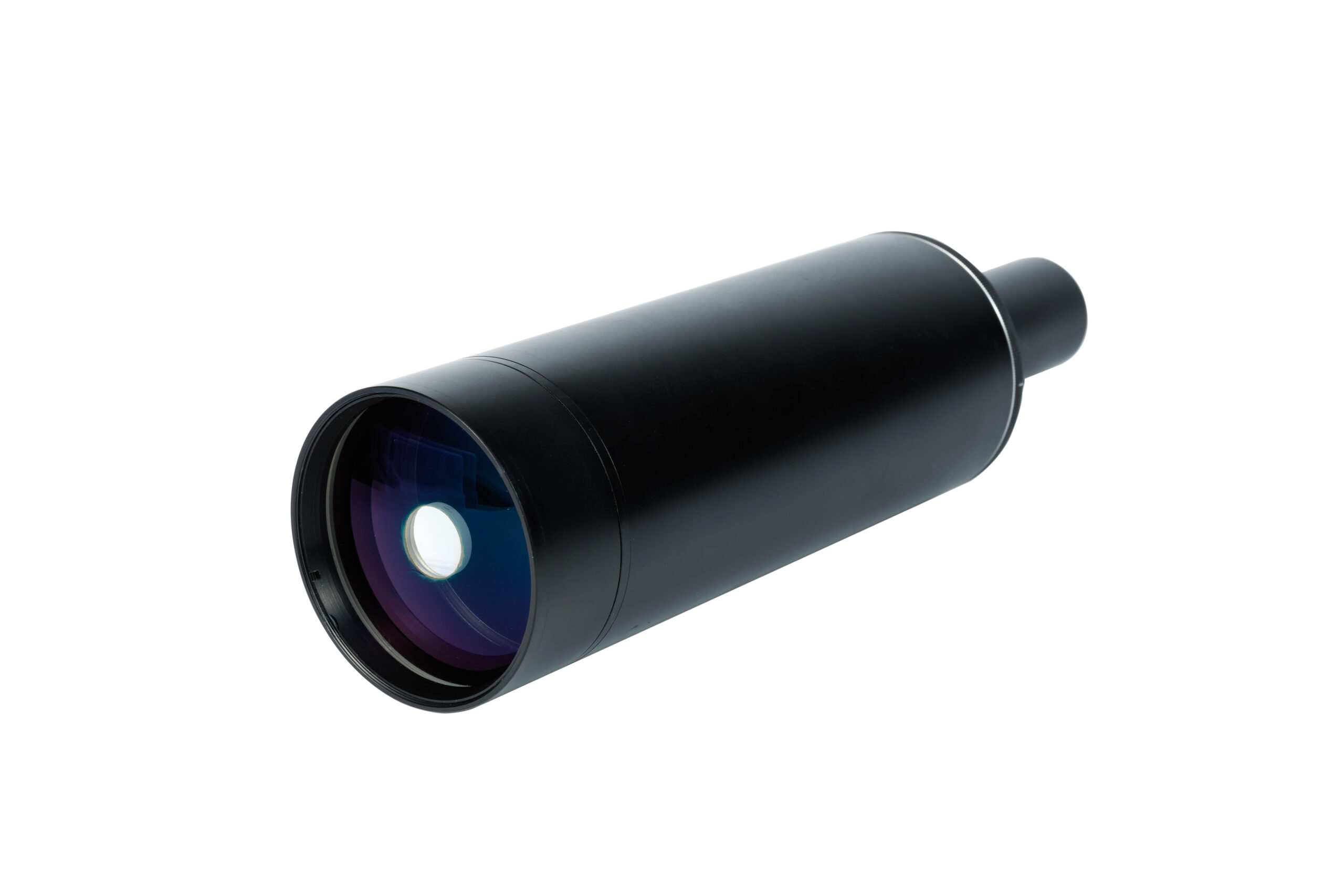

| MCTC-1000 | 1000mm | Φ70mm | 5.3% | 1/15λ@633nm | 290mm×800mm | 0.8KG | Crosshair reticle & Star point reticle |
Features
1. Coaxial Maksutov-Cassegrain optical design with minimal central obstruction for enhanced image quality
2. Constructed with 7-series aluminum, offering durability and lightweight portability
3. Simulates targets at infinity, ideal for focus adjustment and system calibration
4. RMS wavefront error better than 1/15λ @ 633 nm, meeting the demands of high-precision optical testing
