Description

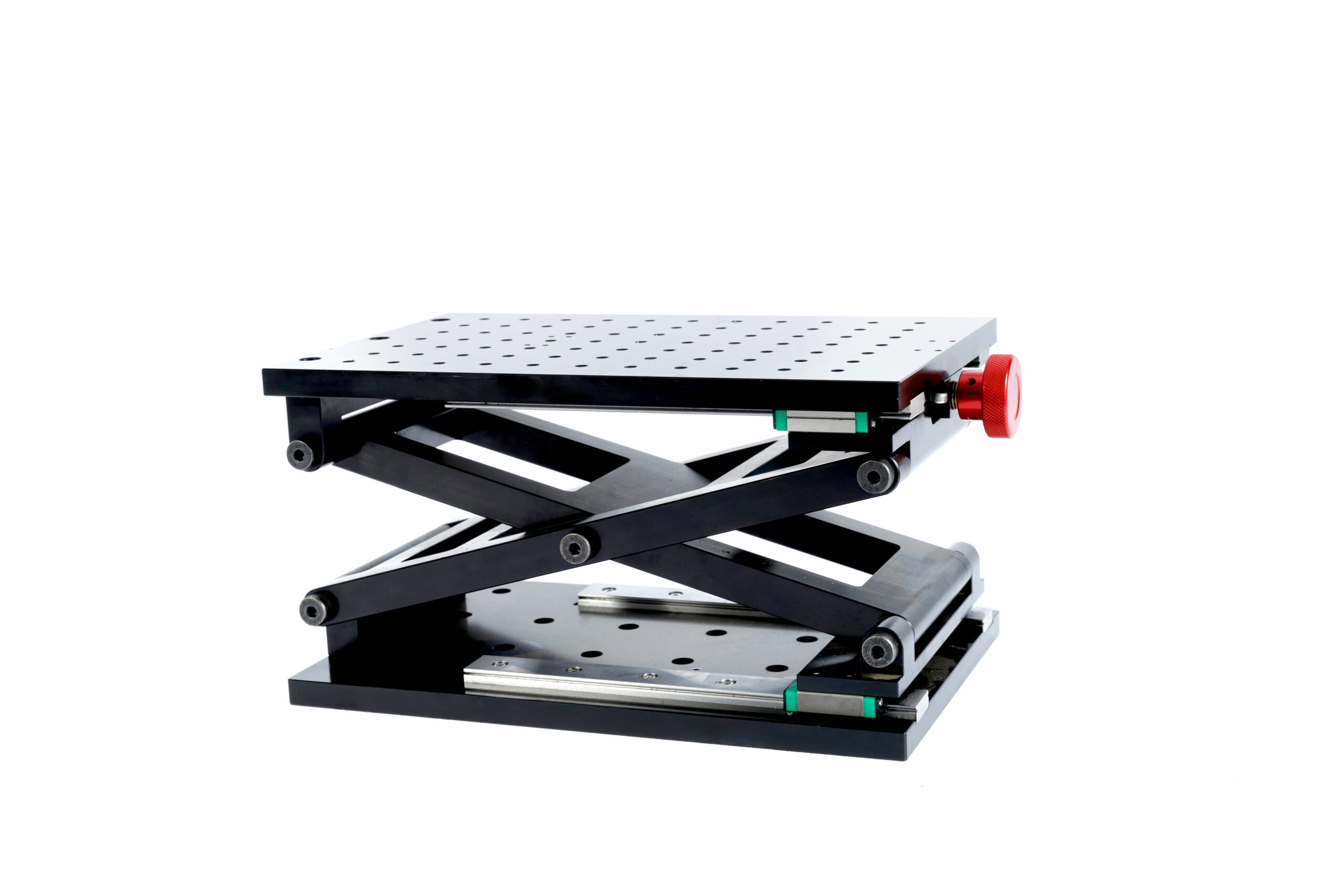

This precision Optical Lab Jack is designed for high-load and high-accuracy applications in optical experiments, laser calibration, and metrology platforms. Featuring a robust lifting mechanism and precise adjustment control, it enables stable and repeatable vertical movement under heavy loads.
Specifications
1. Adjustment Axis: 1D (Z-axis vertical lift)
2. Accuracy: Flatness deviation ≤ 0.03mm over any 50mm lift; zero backlash throughout range
3. Platform Size: 200mm × 320mm
4. Initial Height: 150mm
5. Lifting Range: 150mm to 390mm
6. Platform Weight: 11KG
7. Load Capacity: 35KG
